BDI AC Dual Band VDSL2+ Modem Router with VoIP: Your Comprehensive Network Solution

Unifying Connectivity, Security, and Telephony

The BDI AC Dual Band VDSL2+ Modem Router with VoIP redefines home and office networking by integrating carrier-grade broadband, advanced Wi-Fi, and enterprise telephony capabilities into a single, future-proof platform. Designed for demanding connectivity environments, it eliminates hardware clutter while delivering exceptional performance through Multi-WAN support, dual-band wireless, and robust VoIP functionality.

Engineered for Performance and Resilience

• Multi-Technology Broadband Support:

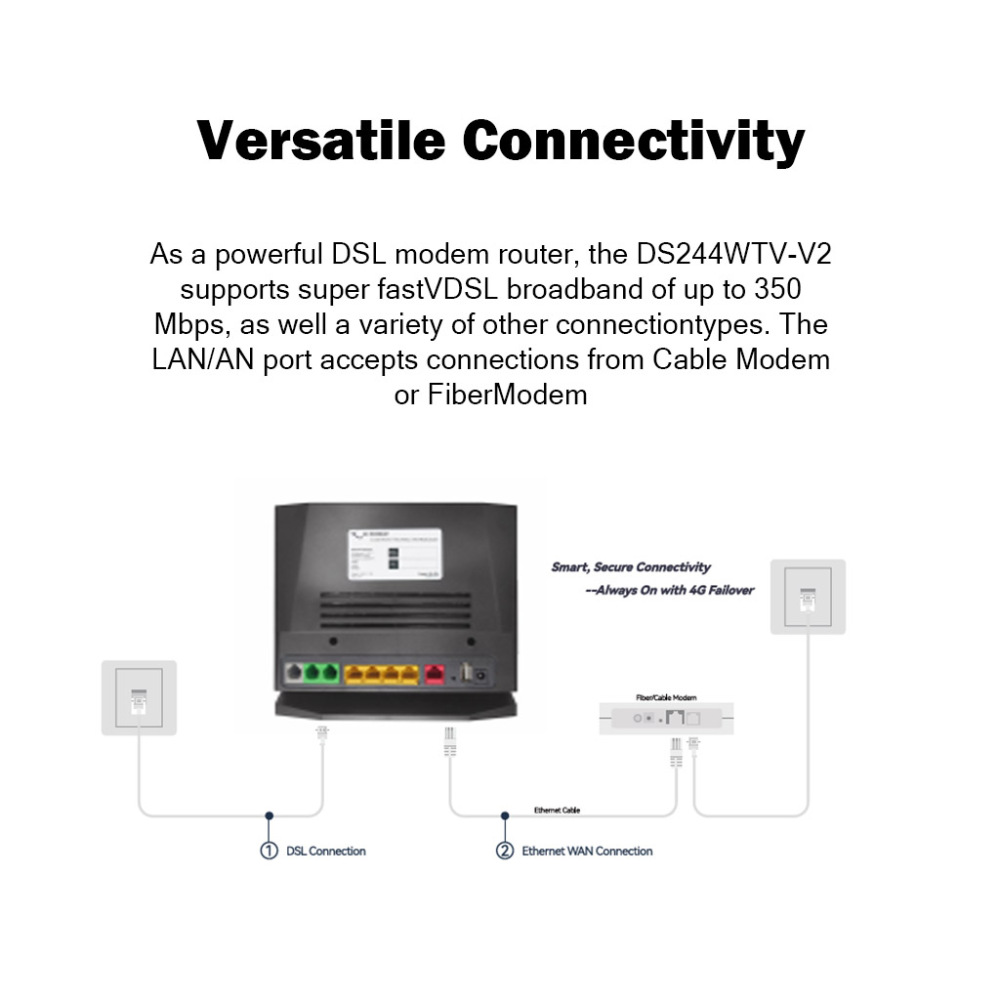

  Seamlessly connects via VDSL2+ (ITU-T G.993.2 profiles 8a-30a with G.vector/G.INP) or traditional ADSL2+ (G.992.1-G.992.5), ensuring compatibility with global ISP infrastructures. Dual-failover mechanisms automatically switch betweenAN sources during outages, guaranteeing uninterrupted service.
• Gigabit-Class Networking:

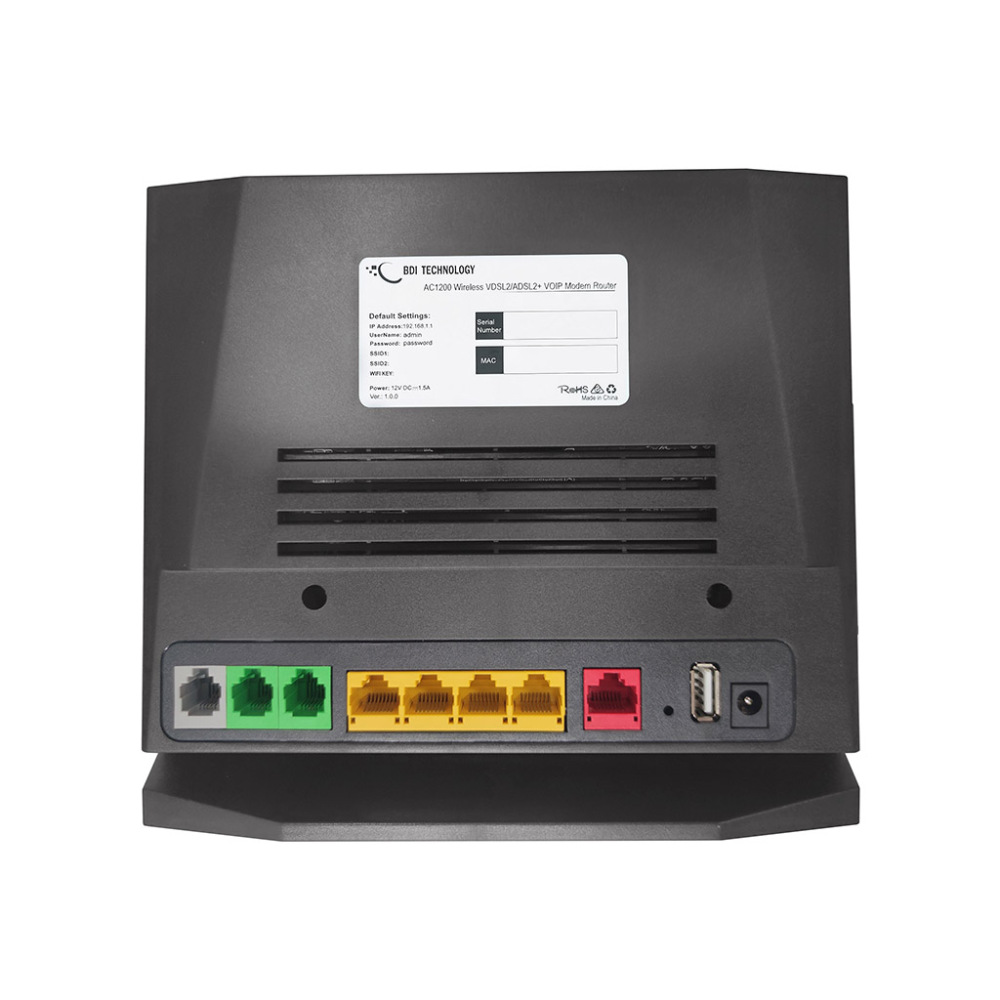

  1×10/100/1000Mbps RJ-45 WAN port + 4×Gigabit LAN ports enable wired transfers up to 1Gbps. Integrated dual-band Wi-Fi leverages 2×2 MU-MIMO technology, delivering combined speeds of:
• 5GHz band: 802.11a/n/ac (867Mbps)
• 2.4GHz band: 802.11b/g/n (300Mbps)
  Optimized for HD streaming, gaming, and concurrent device handling.

Enterprise-Grade Security and Management

• Advanced Firewall & TR069:
  Stateful packet inspection (SPI), DoS/DDoS protection, and VPN passthrough safeguard networks. Free TR069 support enables ISPs to remotely diagnose, configure, and update devices—reducing maintenance costs.
• Zero-Compromise Authentication:
  WEP/WPA/WPA2 wireless encryption paired with HTTP Basic/Digest Access Authentication for security.

Carrier-Class Telephony Integration

• VoIP with Fax Support:
  2×RJ-11 FXS ports support SIP-based voice calls with RTP payload for DTMF/tone transmission. Unique T.38 compliance enables real-time Group 3 fax over IP—critical for medical, legal, and financial applications
• Flexible Peripherals:
  2×USB ports allow shared storage or printer access across the network.

Hassle-Free Deployment and Reliability

• Plug-and-Play Setup:
  Intuitive web interface with auto-detection for VDSL/ADSL/Ethernet WAN configurations.
• Industrial-Grade Components:
  Internal high-gain antennas, ATM/PTM mode switching, and AAL5 (RFC2684/1483) protocol compliance ensure signal stability in dense urban environments.

Packaging Contents

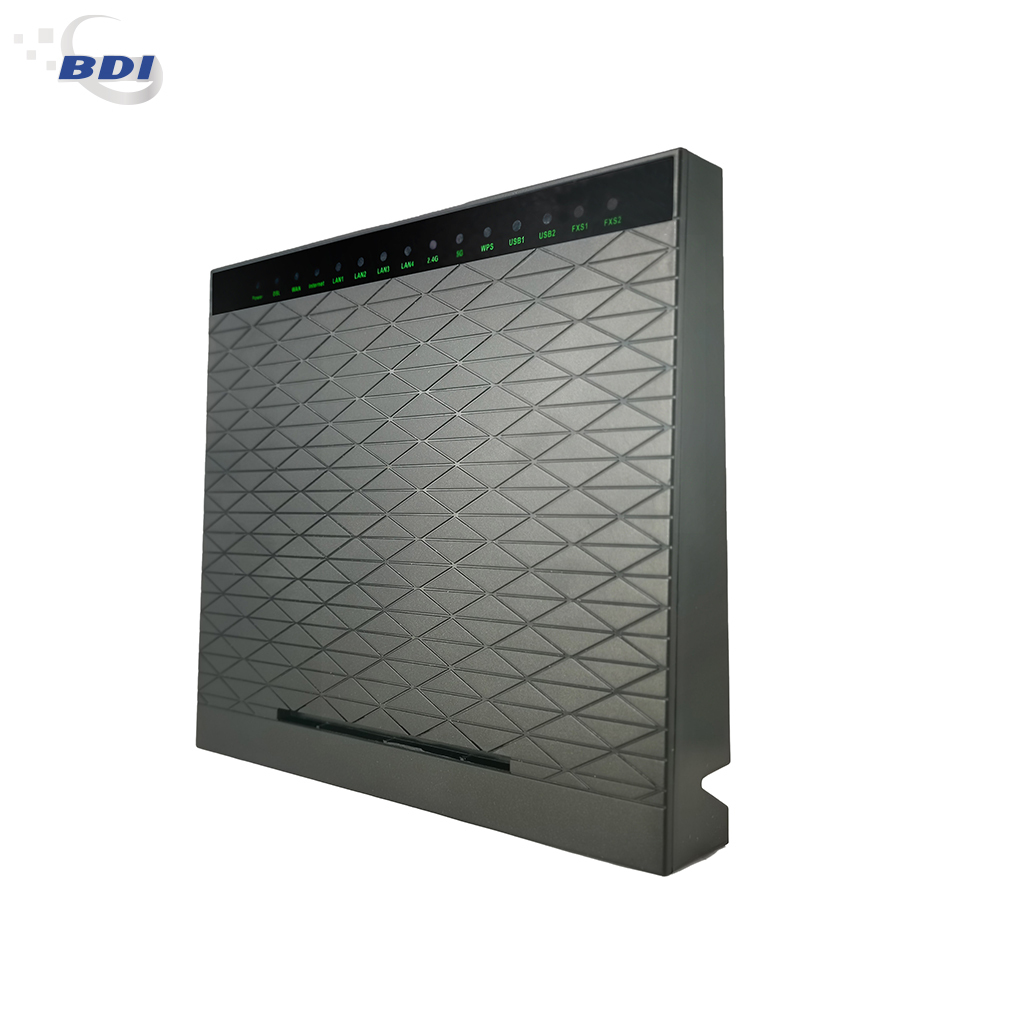

• BDI AC Dual Band VDSL2+ Modem Router (Model: DS244WTV-V2)
• Power adapter
• RJ5e Ethernet cable
• User manual
• Regulatory compliance documentation (CE/FCC certified)

Packaging:
1 x Router DS244WTV-V2 entity
1 x Packaging box
1 x Power source
1 x User manual
1 x Ethernet cable
1 x Telephone line
